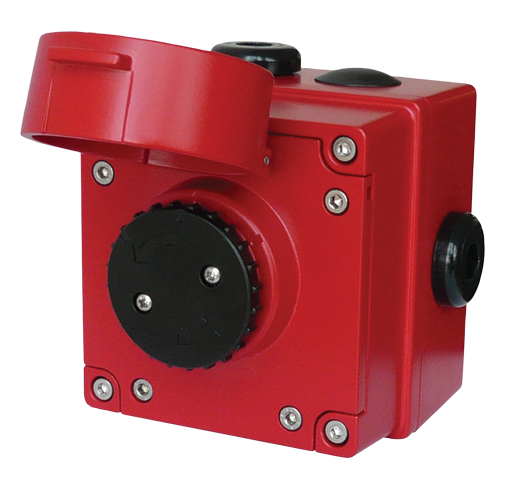

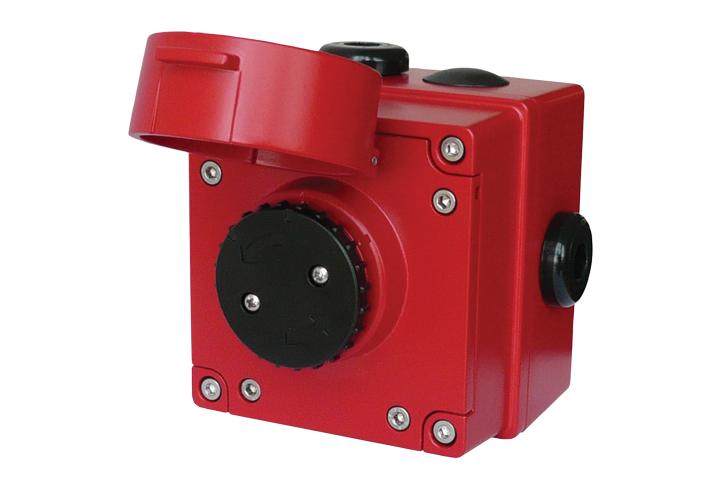

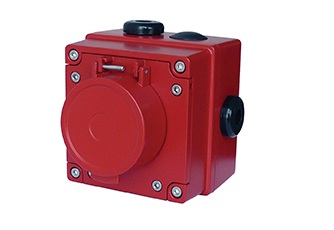

Manual call point(Push button)

BExCP3A-PB / BExCP3B-PB
• Alternative housing colours are available to meet specific requirements.
• DIN rail mounted terminal blocks: 8 x 2.5mm²
• Metalised Polyester “Duty” label
• Series and/or End of Line resistors.

specification
Ambient Ta = -40°C to +55°C(+50°C for

BExCP3B)<Manual Call Point -BExCP3A-PB
II 2G Ex e d IIC T6 Gb
II 2D Ex t IIIC T60? Db
IP66
BExCP3B-PB
II 2G Ex e d mb IIC T4 Gb
II 2D Ex t IIIC T70? Db
IP66
Ambient Ta = -40? to +55? (+50? for BExCP3B)
Ingress protection IP66
Housing material Marine grade copper free LM6 Aluminium
Housing finish Phosphated & powder coated finish : anti-corrosion
Colour RAL3000 Red (others available on request)
Cable entries 2 x M20 clearance top and 1 x M20 clearance side
Back box can be rotated to give 2 x bottom and 1 x side entries
Stopping plugs 2 x Ex e nylon plugs as standard Brass and stainless steel plugs optional
Terminals 6 x 4.0mm²cables
