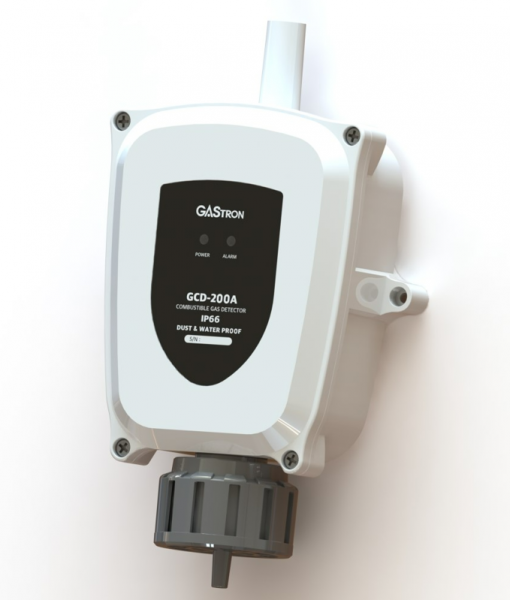

GCD-200A COMMERCIAL GAS DETECTOR (IP66)

Model : GCD-200A

Details: DUST / WATER PROOF – IP66
Gas : Combustible(LPG/LNG)
Comm. : Relay contact / Dry contact
Approval : CE / ST / IP66

Information :

• GCD-200A  Description Detect gas leak below explosion limit with built-in visible and audible alarms.
• IP 66 Dust / Waterproof commercial gas detect
• Generates on/off display or dry relay contact for infer facing with gas monitoring system (With Relay model only). Approved by CE.
• Small and easy to install.
• Can be connected to control unit and shut off valve for automatic shutdown in the event of gas leak (With Relay model only).
• Low price. 3 years of life cycle.
• Operates with 230V AC.
• GHD100A Specification Detection Gas: Liquified Petroleum Gas (LPG) & Liquified Natural Gas (LNG).
• Alarm Concentration: LPG Gas (600-4500ppm) & LNG Gas (600-12500ppm).
• Detection Type: Diffusion
• Measuring Method: Catalytic Combustion Type
• Response Time: <20 sec
• Operation Temperature: -20C – 50C
• Operation Humidity: 10~90%
• RH (Non-condensing)
• Alarm Signal: Lamp (Yellow), Buzzer (Audible)
• Approval: CE approved/ ST
