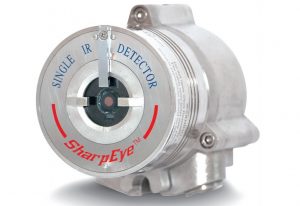

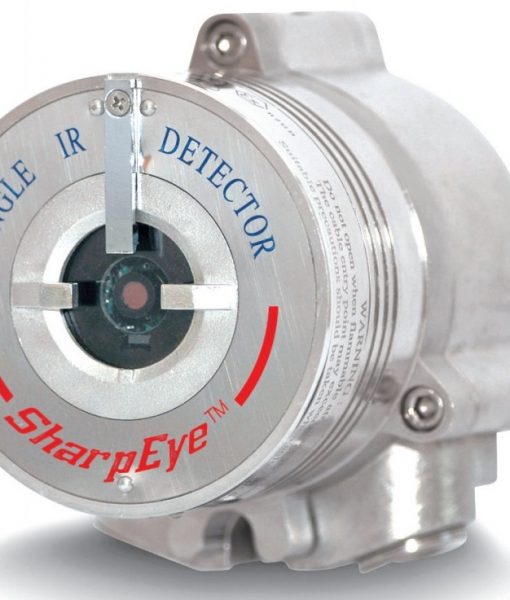

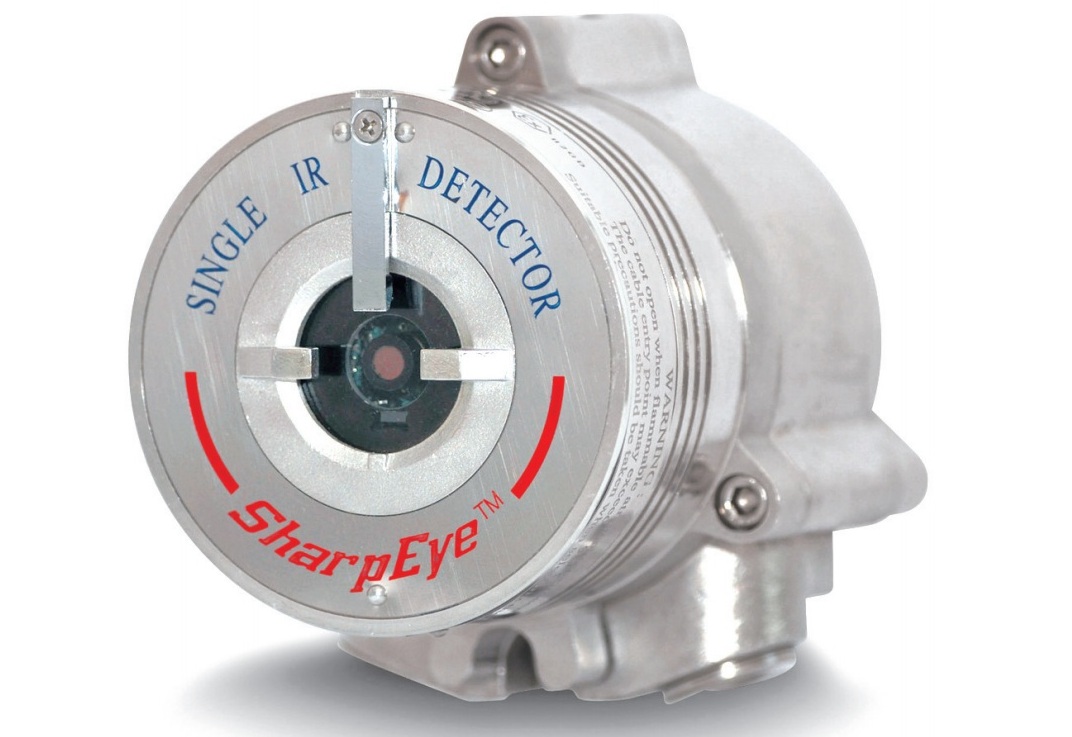

Single IR Flame detector

Model : 40/40R
Source : Single IR
View : Horizontal 90º; Vertical 90º
Response time : Typically 5 seconds

40/40R
▷ Single IR Sensor
▷ Sensitivity Selection – to ensure no zone crossover detection
▷ Automatic and Manual Built-In-Test (BIT) – to assure continued reliable operation
▷ Heated window – for operation in harsh weather conditions (snow, ice, condensation)
▷ Relays (3) for Alarm, Fault and Auxiliary
▷ 4-20mA DC Signal
▷ RS-485, Modbus Compatible and HART Protocol for maintenance and asset management
▷ High Reliability – MTBF – minimum 150,000 hours
▷ Approved to Safety Integrity Level 2 (SIL2 – TUV)
▷ 5-Year Warranty
▷ Ex approved for Zone 1 hazardous area location
