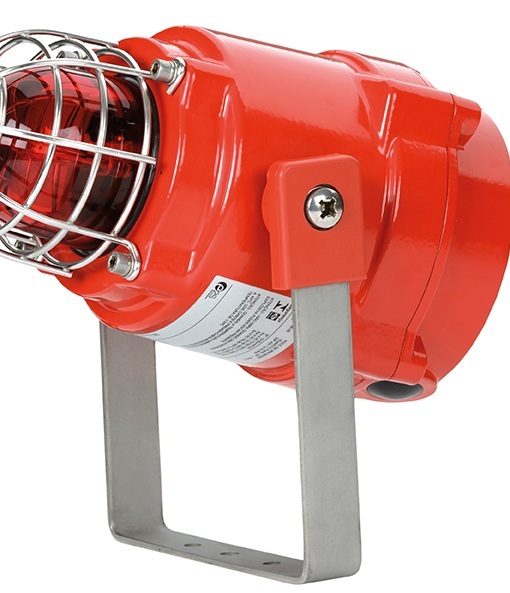

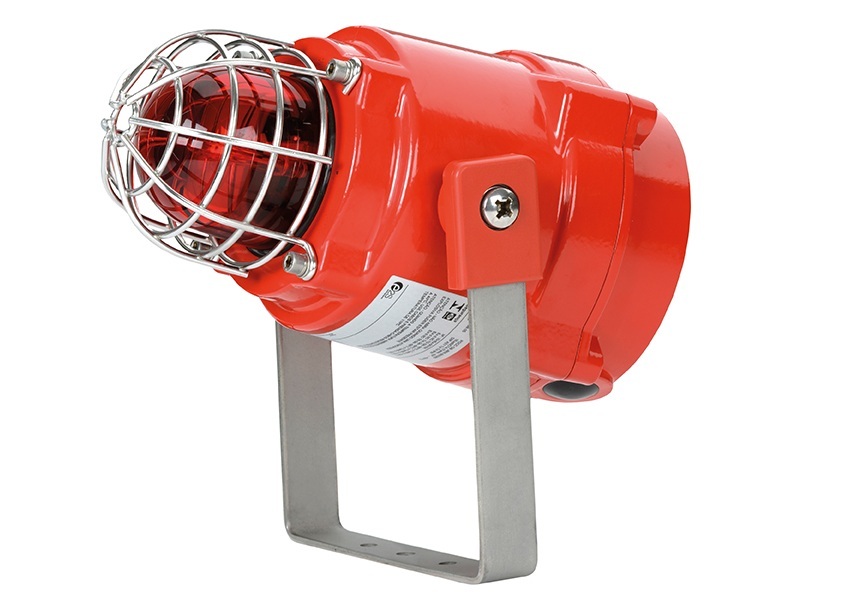

Explosion proof Beacon

Model : BExBG15
Source : Xenon
Energy : 15 Joules (15Ws)
Approval : ATEX, IECEx, GOST-R

BExBG15 Xenon Beacon 15 Joule
• Automatic synchronisation on multi-beacon system.
• Beacons can be set to ‘flip-flop’ alternating mode with other units on multi-beacon systems.
• Xenon tubes mechanically secured against shock & vibration
• Glass lens & Stainless Steel guard
• Very large termination area.
• Ratchet adjustable stainless steel ‘U’ bracket.

Category: .

Specification

Energy: 15 Joules (15Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 1,500,000 cd – calculated from energy (J)
Effective Intensity cd: 750 cd – calculated from energy (J)
Peak Candela: 94,748 cd* – measured ref. to I.E.S.
Effective Intensity cd: 444 cd* – measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Red & Yellow
Voltages DC: 12vdc; 24vdc; 48vdc
Voltages AC: 115vac; 230vac
Ingress protection: BG15D : IP66/67
Housing material: Marine grade copper free, LM6 Aluminium
Housing finish: Phosphated & powder coated finish – anti-corrosion.
Colour: RAL3000 Red(others available on request)
Cable entries: Dual M20 ISO (one stopping plug inc)
Terminals: 0.5 to 4.0mm² cables.
Line monitoring : Min. 500 Ohm 2w, or 3k3 Ohm / 0.5w res. or diode within Exd enclosure (dc versions).
Tube life : Emissions are reduced to 70% after 8 million flashes
Weight : DC: 2.45kg / AC: 2.75kg
*All candela data is representative of performance with clear lens at optimum voltage.

BExBG15D** ATEX / IECEx:
II 2G Ex d IIC T4 Ta. -50°C to +70°C
II 2G Ex d IIC T5 Ta. -50°C to +40°C
II 2D Ex tD A21 IP67 T125°C based on max. Ta. 70ºC
GOST-R:
1ExdIICT4 Ta. -50° to +55°C
DIP A21 Ta T4
