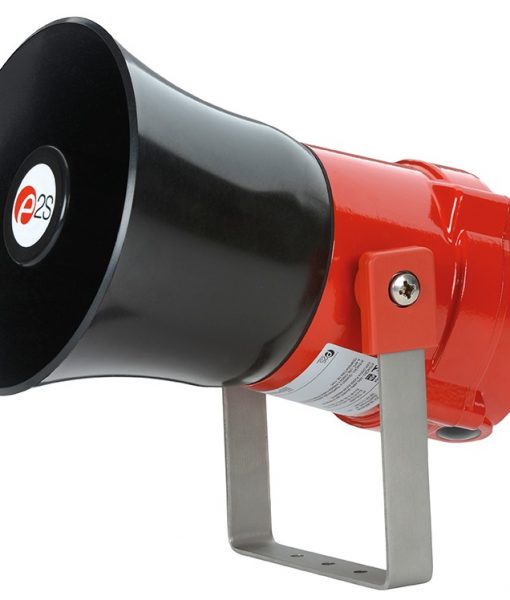

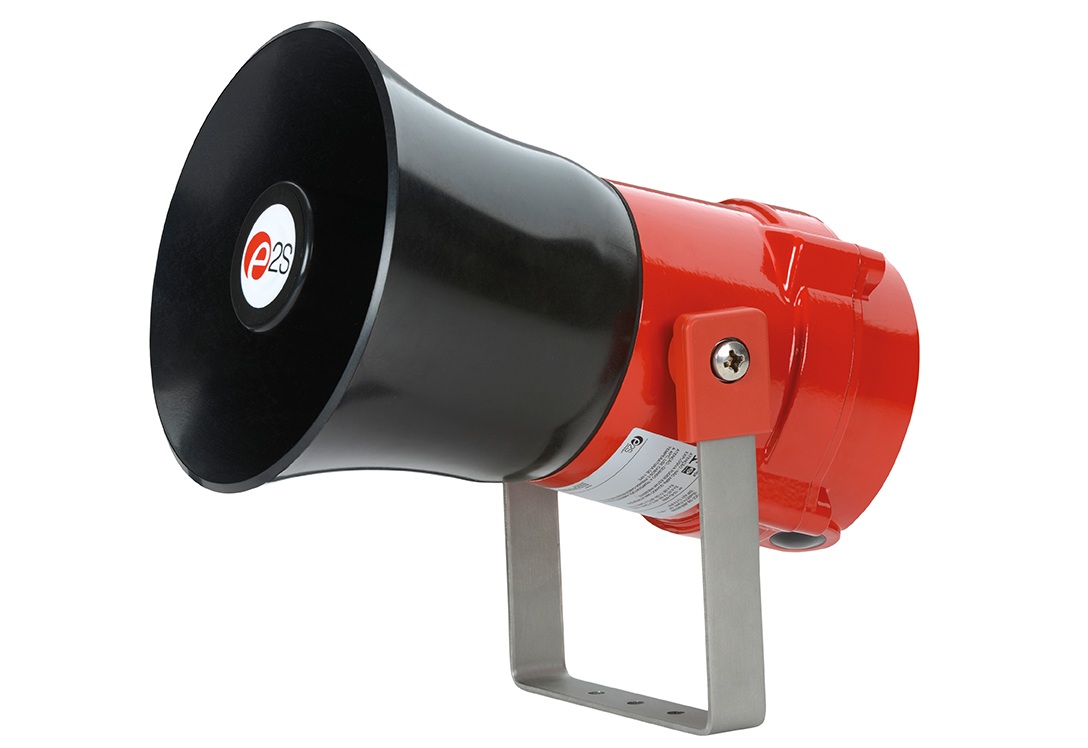

Explosion proof Sounder

Model : BExS110D / BExDS110D
Nominal output : 110dB(A) @ 1m +/- 3dB
Effective range : 100m @ 1KHz
Approval : ATEX, IECEx, GOST-R

• Automatic synchronisation on multi-sounder system.
• Very large termination area.
• Ratchet adjustable stainless steel ‘U’ bracket.
• IN & OUT terminals (Ex de version only).
• ‘Programmable’ version available:
– 45 alarm tones
– 4 remotely selectable stages
– Any tone can be assigned to any stage
– User configurable continuous frequency tone

Category: .

Maximum output: 117dB(A) @ 1 metre
Nominal output: 110dB(A) @ 1m +/- 3dB – Tone 2
No. of tones: 32 (UKOOA / PFEER compliant)
No. of stages: 3
Volume control: Max. 110dB(A); Min. 72dB(A) – Tone 2
Effective range: 100m @ 1KHz
Voltages DC: 12vdc; 24vdc; 48vdc
Voltages AC: 115vac; 230vac
Stage switching: Negative or positive
Ingress protection: S110D : IP66/67
Housing material: Marine grade copper free LM6 Aluminium
Housing finish: Phosphated & powder coated finish – anti-corrosion.
Colour: RAL3000 Red(others available on request)
BExS110 flare: High impact UL94 V0 & 5VA FR ABS (Red)
BExDS110 flare: Anti-Static High impact ABS (Black)
Cable entries: Dual M20 ISO(one stopping plug inc)
Terminals: 0.5 to 4.0mm² cables.
Line monitoring: Min. 500 Ohm 2w, or 3k3 Ohm 0.5w res. or diode within Exd enclosure (dc versions).
Weight: DC: 3.00kg AC: 3.20kg

BExS110D** ATEX / IECEx:
II 2G Ex d IIB T4 Ta. -50° to +70°C
II 2G Ex d IIC T4 Ta. -50° to +55°C
1ExdIICT4 Ta. -50° to +55°C
II 2G Ex d IIB T4 Ta. -50° to +70°C
II 2G Ex d IIC T4 Ta. -50° to +55°C
II 2D Ex tD A21 IP67 T115
based on a max. Ta. of 70°C
1ExdIICT4 Ta. -50° to +55°C T100°C
DIP A21 Ta T4
