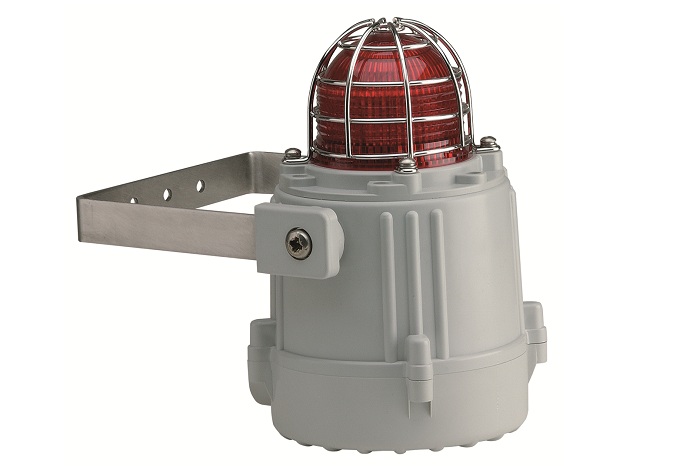

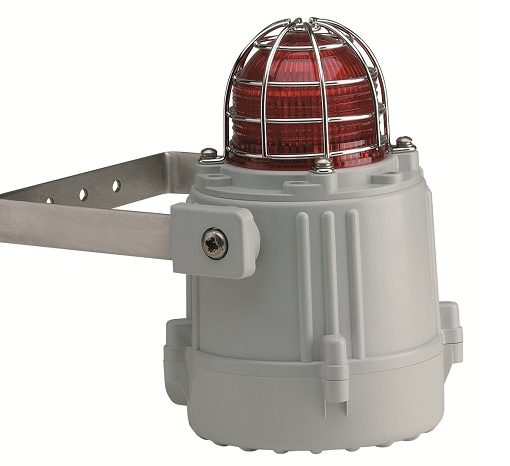

Non-explosion proof Beacon

Non-explosion proof Beacon
Model : MB005
Source : Xenon
Energy : 5 Joules (5Ws)

• Automatic synchronised flash, or Flip-Flop alternating mode.
• Xenon tube mechanically secured against vibration.
• Continuously rated.
• Large termination area.
• Stainless steel fixings.
• Ratchet adjustable stainless steel ‘U’ bracket for 360° positioning.
• Duplicate cable terminations (in & out for daisy-chain installations).
• Tropicalised as standard.

Category: .


Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 500,000 cd – calculated from energy (J)
Effective Intensity cd: 250 cd – calculated from energy (J)
Peak Candela: 16,428 cd* – measured ref. to I.E.S.
Effective Intensity cd: 51 cd* – measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Red & Yellow
Voltages DC: 12V dc; 24V dc; 48V dc
Voltages AC: 115V ac; 230V ac
Ingress protection: IP66 & IP67 (Third party tested)
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Grey (RAL7038)
Cable entries: 2 x M20 supplied with 1 blanking plug
Lens material: Borosilicate glass dome with PC prismatic lens cover.
Guard: Stainless Steel dome guard as standard
Terminals: 0.5 to 4.0mm² cables.
Operating temp: -25 to +55°C [-13° to +131°F]
Storage temp: -40 to +70°C [-40 to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 1.48kg/3.25Ibs
*Candela measurements representative of performance with clear lens at optimum voltage.
